COLO-800D-A
COLO

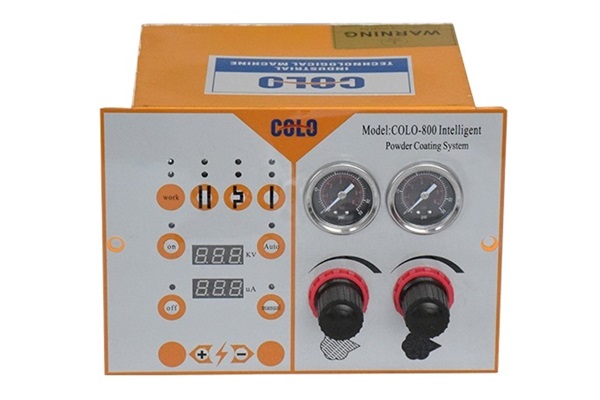

1. The intelligent controller offers basic functions for precisely adjusting high voltage from 0-100kv by keyboards, the kv and amperage values will be shown on the digital display for accurate reading. Powder conveying air and atomization air are regulated by mechanizal valves.
2. It is convenient and swift to change the shape for coating, just press the 3 one-touch intelligent buttons, the coating mode switches automatically,
Flat coating: ideal for flat shape workpieces.
Corner coating: ideal for complex shape parts with deep corners.
Recoating: ideal for repairing coating.

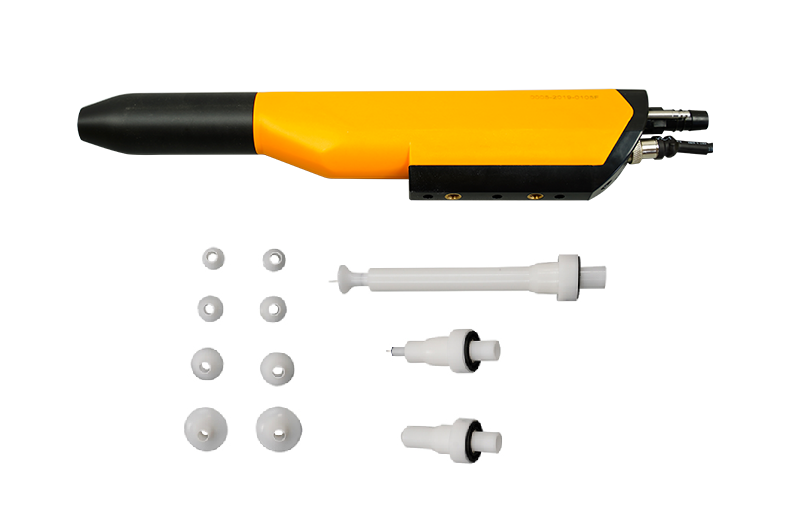

1. Powder particles are maximumly charged thanks to the 100kv powerful spray gun, which delivers best transfer efficiency for a great utilization of powder materials.
2. The full spray nozzle assembly includes round nozzle, flat nozzle, extension nozzle which allows you easily painting different shaped parts whether flat, round or complicated.
3. Air-purge cleanable design for fast, easy cleaning, without gun disassembly, a requirement for all quick color change applications
| COLO-800D | |
| Voltage | AC220/110V |
| Frequency | 50HZ—60HZ |
| Temperature | -10 – 50 °C |
| Spray Gun | |
| Gun Weight: | 500g |
| Related Output Voltage： | 24VDC |
| Maximum Output Current | 180Ua (max) |
Maximum Output Voltage | 0-100KV (adjustable) |
| Maximum Powder Injection | 600g/min |
| Polarity | Negative (-) |
| Pneumatic Data | |
Maximum Input-air Pressure | 10kg/cm |
| Optimum Input-air Pressure | 6kg/cm |
| Minimum Input-air Pressure | 4kg/cm |
| Maximum Water Vapor Content of Compressed Air | 1.4g/N m3 |
| Maximum Oil Vapor content of Compressed Air | 0.1ppm |
| Maximum Compressed Air Consumption | 13.2 m3/h |
1. The intelligent controller offers basic functions for precisely adjusting high voltage from 0-100kv by keyboards, the kv and amperage values will be shown on the digital display for accurate reading. Powder conveying air and atomization air are regulated by mechanizal valves.
2. It is convenient and swift to change the shape for coating, just press the 3 one-touch intelligent buttons, the coating mode switches automatically,
Flat coating: ideal for flat shape workpieces.
Corner coating: ideal for complex shape parts with deep corners.
Recoating: ideal for repairing coating.
1. Powder particles are maximumly charged thanks to the 100kv powerful spray gun, which delivers best transfer efficiency for a great utilization of powder materials.
2. The full spray nozzle assembly includes round nozzle, flat nozzle, extension nozzle which allows you easily painting different shaped parts whether flat, round or complicated.
3. Air-purge cleanable design for fast, easy cleaning, without gun disassembly, a requirement for all quick color change applications
| COLO-800D | |
| Voltage | AC220/110V |
| Frequency | 50HZ—60HZ |
| Temperature | -10 – 50 °C |
| Spray Gun | |
| Gun Weight: | 500g |
| Related Output Voltage： | 24VDC |
| Maximum Output Current | 180Ua (max) |
Maximum Output Voltage | 0-100KV (adjustable) |
| Maximum Powder Injection | 600g/min |
| Polarity | Negative (-) |
| Pneumatic Data | |
Maximum Input-air Pressure | 10kg/cm |
| Optimum Input-air Pressure | 6kg/cm |
| Minimum Input-air Pressure | 4kg/cm |
| Maximum Water Vapor Content of Compressed Air | 1.4g/N m3 |
| Maximum Oil Vapor content of Compressed Air | 0.1ppm |
| Maximum Compressed Air Consumption | 13.2 m3/h |
