COLO-800D
COLO

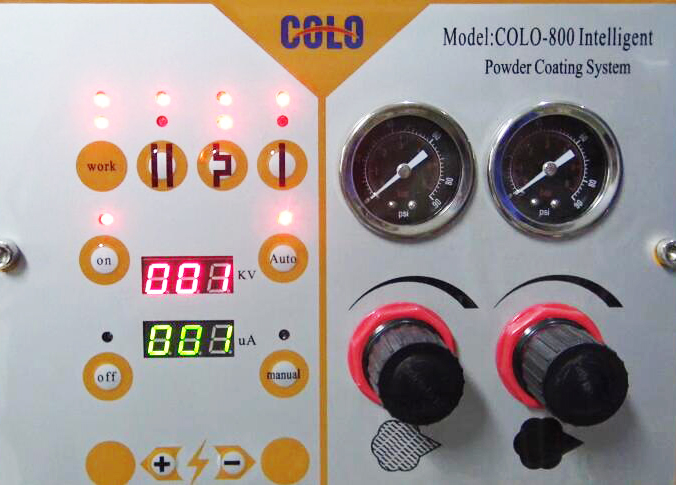

1. The intelligent controller offers basic functions for precisely adjusting high voltage from 0-100kv by keyboards, the kv and amperage values will be shown on the digital display for accurate reading. Powder conveying air and atomization air are regulated by mechanizal valves with convenience and reliability.
2. It is convenient and swift to change the shape for coating, just press the 3 one-touch intelligent buttons, the coating mode switches automatically, suitable for beginners who are short of knowledge of parameter setting.
Flat coating: ideal for flat shape workpieces.
Corner coating: ideal for complex shape parts with deep corners.
Recoating: ideal for repairing coating.
1. Powder particles are maximumly charged thanks to the 100kv powerful spray gun, which delivers best transfer efficiency for a great utilization of powder materials.
2. Designed for optimal atomization for a good wrap performance into object surfaces..
3. The full spray nozzle assembly includes round nozzle, flat nozzle, extension nozzle which allows you easily painting different shaped parts whether flat, round or complicated.
4. Lightweight and ergonomical design enables operators to accomplish jobs at ease. Robust structure and high-quality materials provides this spray gun a longer lifespan.

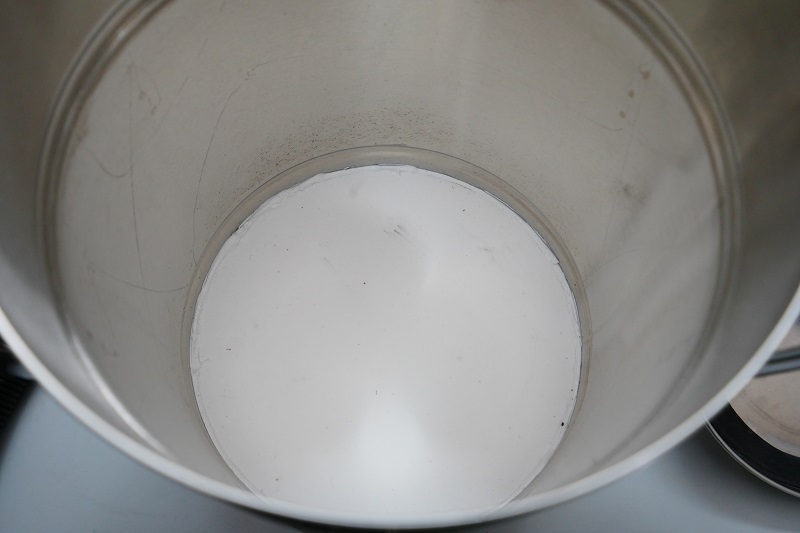

1. Size: D20xH30cm, 10lbs portable hopper is ideal for small scale powder coating business.
2. The stainless steel hopper features durable and long life, which is easy to clean.
3. Fully assembled with fluidizing plate and powder suction tube, which allows powders easily to be conveyed from the hopper to the gun with a high degree of uniformity and consistency.
4. Powders stored in a well-sealed hopper will maintain a dry condition without moist, which is important to get a uniform powder output cloud and quality finishing results
| COLO-800D | |
| Voltage | AC220/110V |
| Frequency | 50HZ—60HZ |
| Temperature | -10 – 50 °C |
| Spray Gun | |
| Gun Weight: | 500g |
| Related Output Voltage： | 24VDC |
| Maximum Output Current | 180Ua (max) |
Maximum Output Voltage | 0-100KV (adjustable) |
| Maximum Powder Injection | 600g/min |
| Polarity | Negative (-) |
| Pneumatic Data | |
Maximum Input-air Pressure | 10kg/cm |
| Optimum Input-air Pressure | 6kg/cm |
| Minimum Input-air Pressure | 4kg/cm |
| Maximum Water Vapor Content of Compressed Air | 1.4g/N m3 |
| Maximum Oil Vapor content of Compressed Air | 0.1ppm |
| Maximum Compressed Air Consumption | 13.2 m3/h |
1. The intelligent controller offers basic functions for precisely adjusting high voltage from 0-100kv by keyboards, the kv and amperage values will be shown on the digital display for accurate reading. Powder conveying air and atomization air are regulated by mechanizal valves with convenience and reliability.
2. It is convenient and swift to change the shape for coating, just press the 3 one-touch intelligent buttons, the coating mode switches automatically, suitable for beginners who are short of knowledge of parameter setting.
Flat coating: ideal for flat shape workpieces.
Corner coating: ideal for complex shape parts with deep corners.
Recoating: ideal for repairing coating.
1. Powder particles are maximumly charged thanks to the 100kv powerful spray gun, which delivers best transfer efficiency for a great utilization of powder materials.
2. Designed for optimal atomization for a good wrap performance into object surfaces..
3. The full spray nozzle assembly includes round nozzle, flat nozzle, extension nozzle which allows you easily painting different shaped parts whether flat, round or complicated.
4. Lightweight and ergonomical design enables operators to accomplish jobs at ease. Robust structure and high-quality materials provides this spray gun a longer lifespan.
1. Size: D20xH30cm, 10lbs portable hopper is ideal for small scale powder coating business.
2. The stainless steel hopper features durable and long life, which is easy to clean.
3. Fully assembled with fluidizing plate and powder suction tube, which allows powders easily to be conveyed from the hopper to the gun with a high degree of uniformity and consistency.
4. Powders stored in a well-sealed hopper will maintain a dry condition without moist, which is important to get a uniform powder output cloud and quality finishing results
| COLO-800D | |
| Voltage | AC220/110V |
| Frequency | 50HZ—60HZ |
| Temperature | -10 – 50 °C |
| Spray Gun | |
| Gun Weight: | 500g |
| Related Output Voltage： | 24VDC |
| Maximum Output Current | 180Ua (max) |
Maximum Output Voltage | 0-100KV (adjustable) |
| Maximum Powder Injection | 600g/min |
| Polarity | Negative (-) |
| Pneumatic Data | |
Maximum Input-air Pressure | 10kg/cm |
| Optimum Input-air Pressure | 6kg/cm |
| Minimum Input-air Pressure | 4kg/cm |
| Maximum Water Vapor Content of Compressed Air | 1.4g/N m3 |
| Maximum Oil Vapor content of Compressed Air | 0.1ppm |
| Maximum Compressed Air Consumption | 13.2 m3/h |
