CL-PT1000
COLO

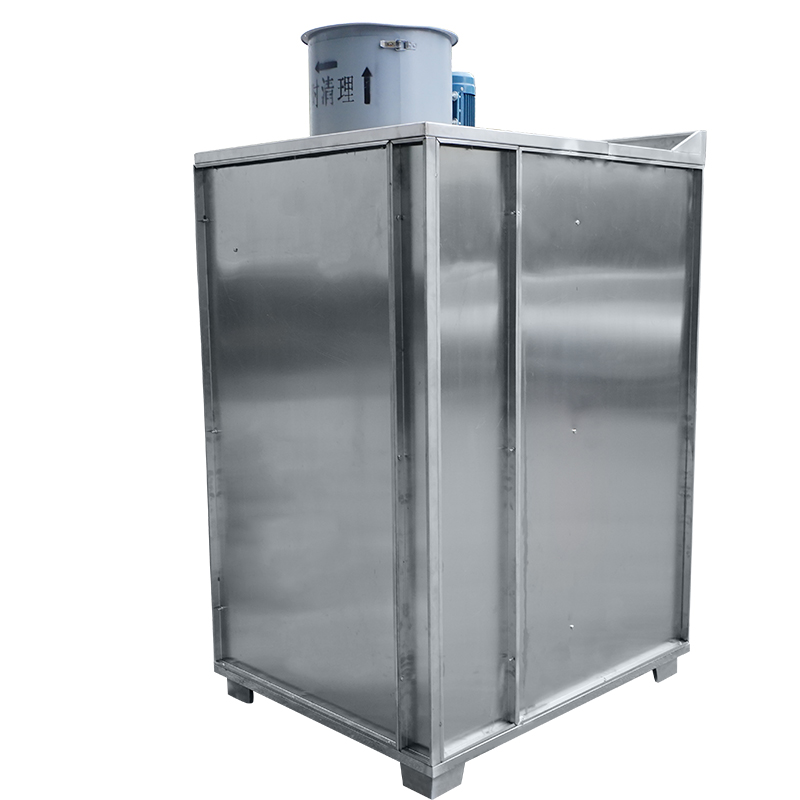

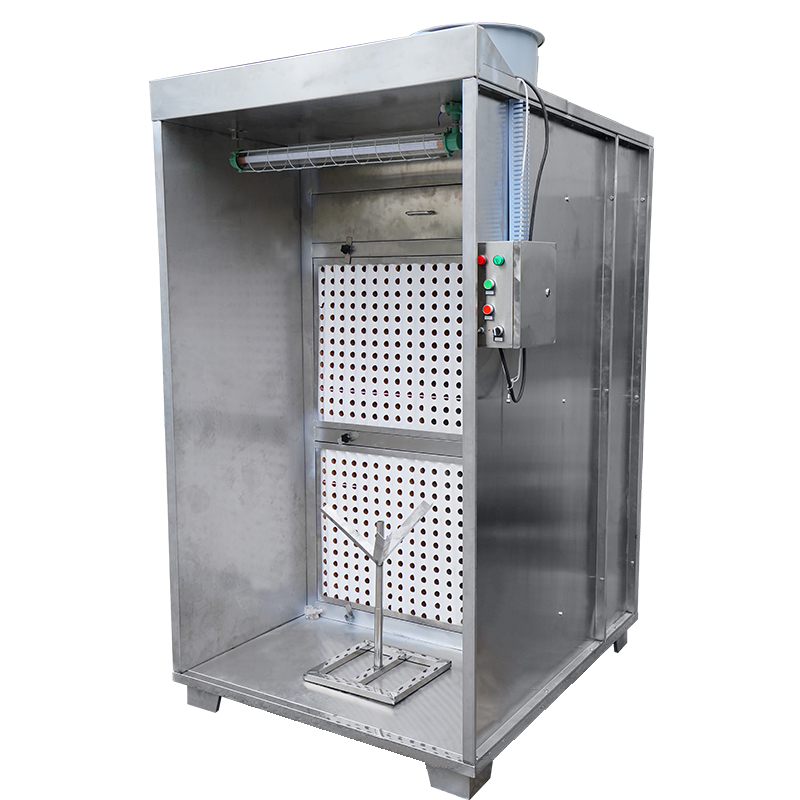

The dry spray booth is constructed with stainless steel chamber, air supply system, air venting system, and filtration system. Primarily by means of the physical interception of the filter medium to capture the suspend paint particles, and achieve separating rate over 98%, ensure clean and health working condition to environmental codes.
1. The filtration section excellently combines paper filter and fiber filter to capture pollutent particulates.
2. The paper filter consists of two layers of foldable cardboard which contain holes, the 2 layers bonded together and forms V-shaped filteration chambers.
3. During painting process, The "hole pattern" separation filter for paint booths promotes the deposition of particles by forcing air laden with particles to change direction continuously. Thus, these successive movements ensure the deposition of particles on the walls as long as the flow of air is in continuous movement.
4. Finally use fiber filter to further accommodate the remaining paint particles.
| Model | CL-PT1000 |
| Working Width | 1000mm |
| Fan Motor Airflow | 5500 m3/h |
| Fan Motor Power | 0.75kw |
| Weight | 250kgs |
 Axial Flow Fan Axial flow fan with external motor fitted on the top, works with low noise and over rated airflow. Features longer life and less maintenance. |

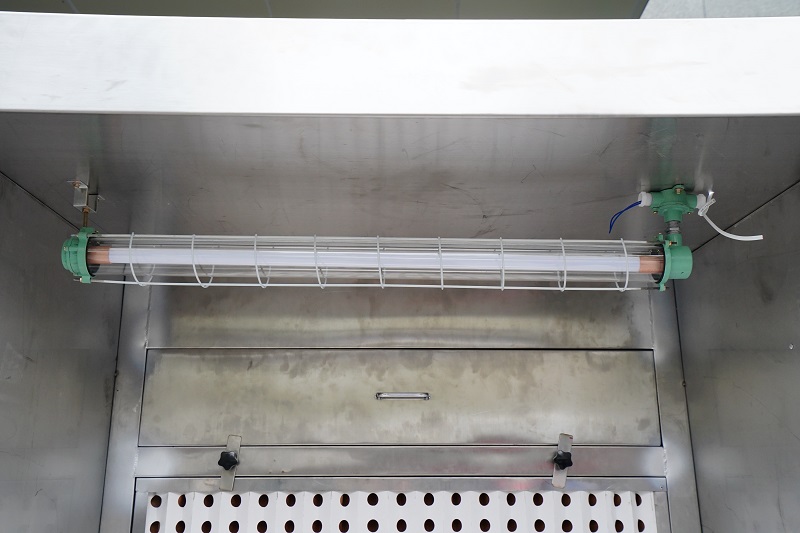

 Light Built with explosion-proof LED light on the booth's internal top, ensures clear sight during painting jobs. |

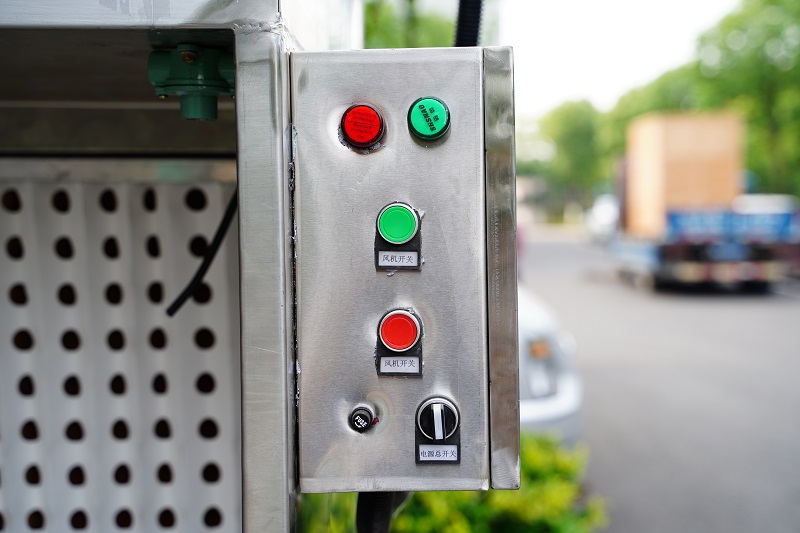

 Control Easy operation electric panel control the work of fan, light, and power connection. |
 Filter Special paper filter and fiber filter are used to which any sticky particles adhere, allowing only particulate-free air extracted to atomsphere. The filter media is designed for easy change. |
