COLO

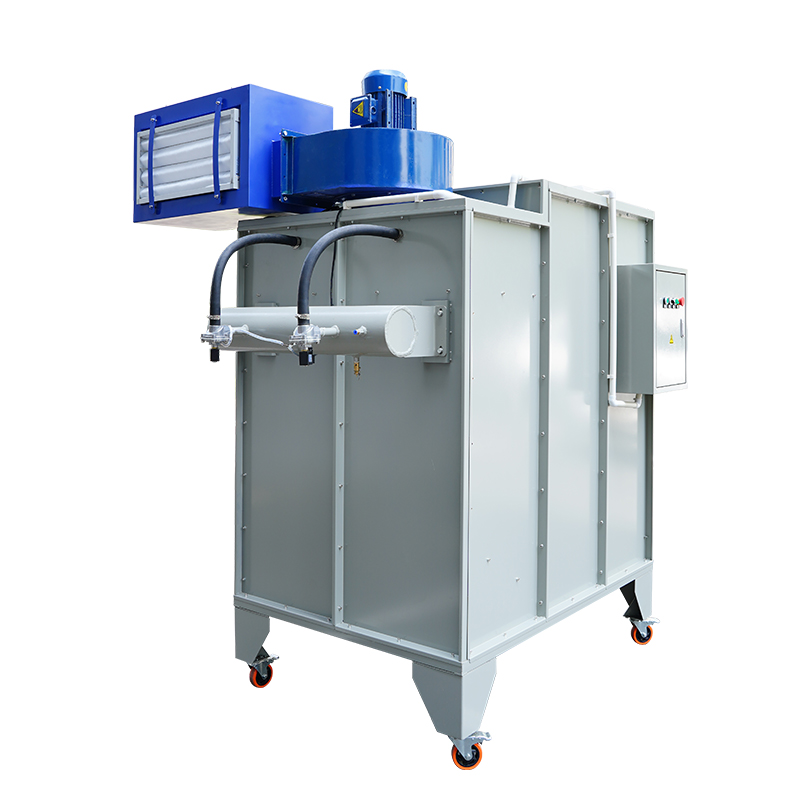

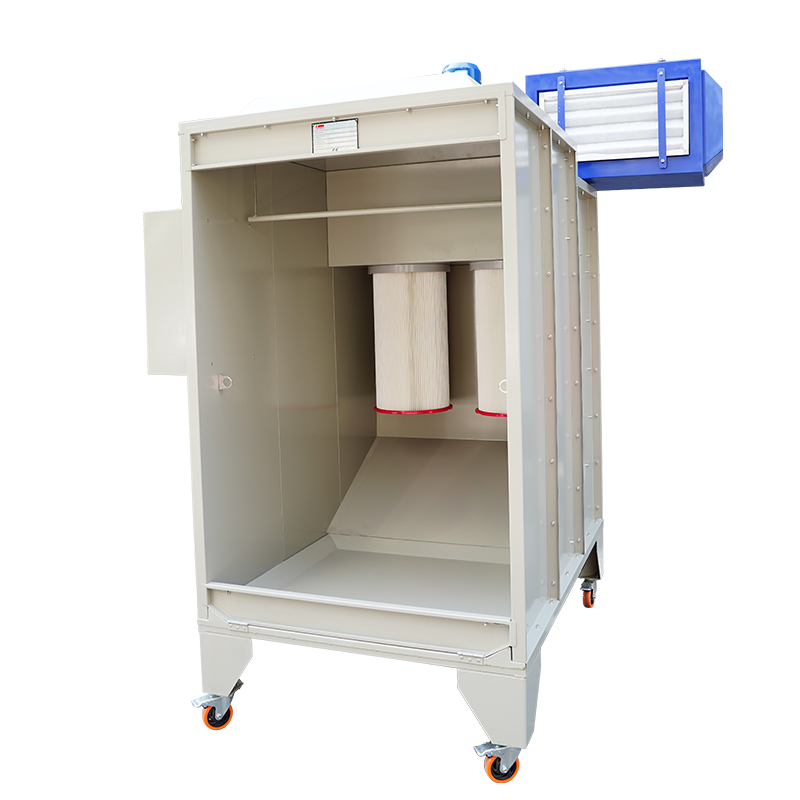

The compact and easy-to-use powder coating booth is specially designed for small shop jobs which requires strict environment control. Such space-saving spray booth with 4 foot wheels is allowed moving everywhere.
Incorperates with 2 pcs of first-stage cartridge filters, as well as a final stage fan filter, this system works by removing 99% of the dust to allow super-clean air to be recirculated back into the workshop. There is no need to duct this air from the workshop, There is no need to cut another hole in the shop's roof.
1. The 2pcs high precision cartridge filters made from 100% polyester, they have the exact porosity that well separates the powder particles from the airflow. The filters retain their capacity through a self-cleaning system controlled by pulse solenoid valves
2. Built with lights on the inner roof creates a clear and precise powder coat application job.
3. Easy-to-use electric controller includes the functions of fan on/off, pulse filter cleaning, emergency stop and so on.
4. By means of a powerful centrifugal fan drawing clean air into the booth, and dragging the overspray powders towards filters for completely capture.
5. Connect a air filter with the fan to prevent ultrafine powder entering to the workshop air, ensures extremely dustfree of vented air.

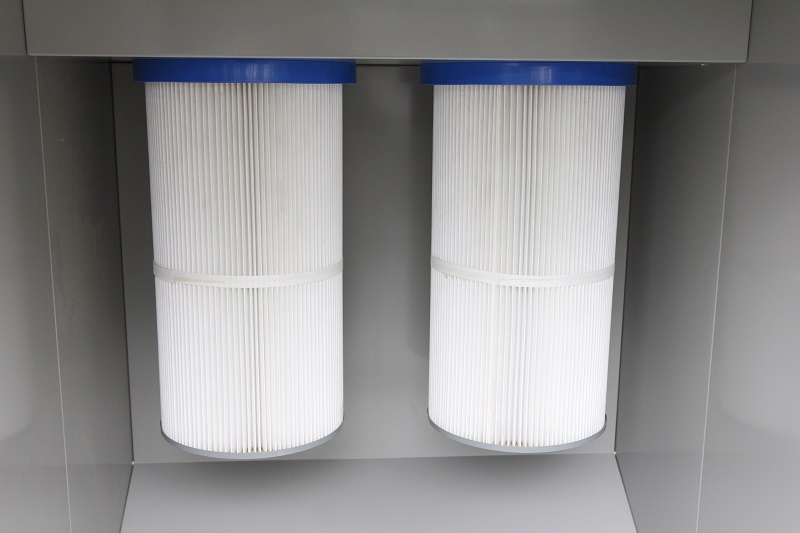

Cartridge Filters

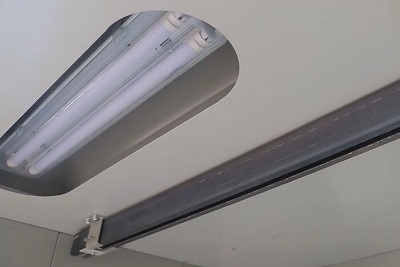

Lighting

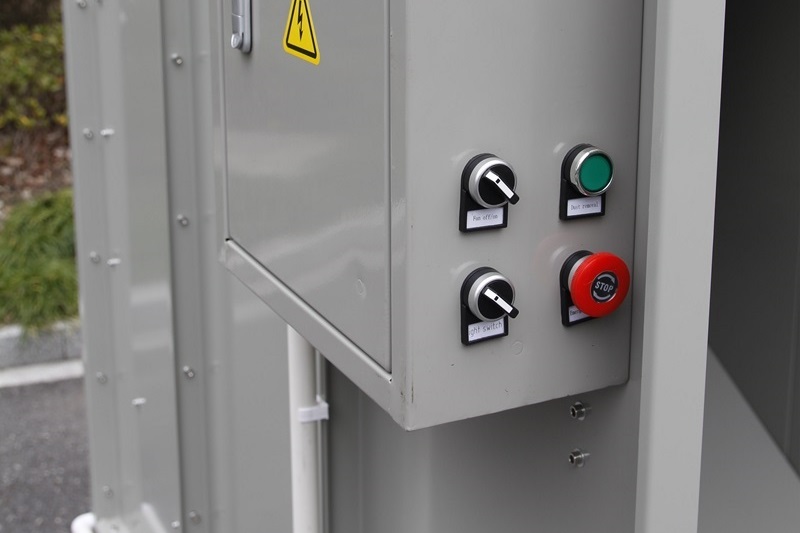

PLC Control

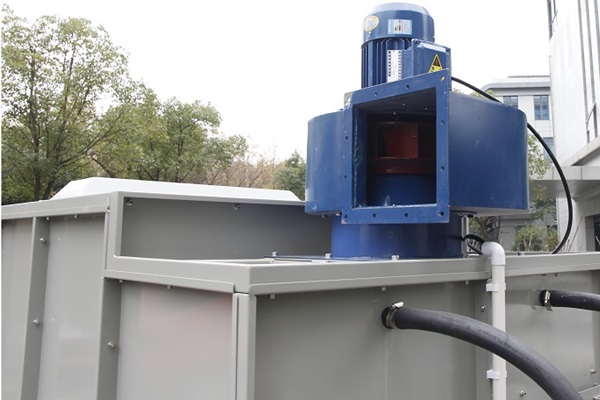

Fan Motor
filter cleaning valves

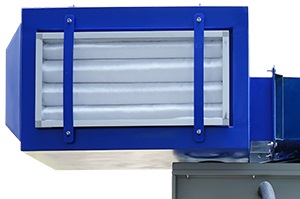

Air Filter for Fan
Our powder coating booths are widely for small metal parts applications, such as alloy wheels, motorcycle parts, steel plates, which offers easy operation and efficient working. Catridge filters are quick release type that makes it easy for replacement during color change. The standard paint booth is overall shipped and well tested before delivery, only requires simple electric & pneumatic connection before using.
Choose from COLO standard models or we can custom design an industrial paint spray booth to meet your specific requirements.
| Model | COLO-1115 |
| Operation Size | Width1000 * Depth1000 * Height1500mm |
| Overall Size | Width1200 * Depth1500 * Heght2000mm |
| Voltage | AC 220V/380V (can be customized) |
| Frequency | 50-60 HZ |
| Power Comsumption | 1.5KW |
| Cartridge FIlters | 2pcs (325*600mm) |
| Filter Cleaning System | Pneumatic |
