COLO-PT1500

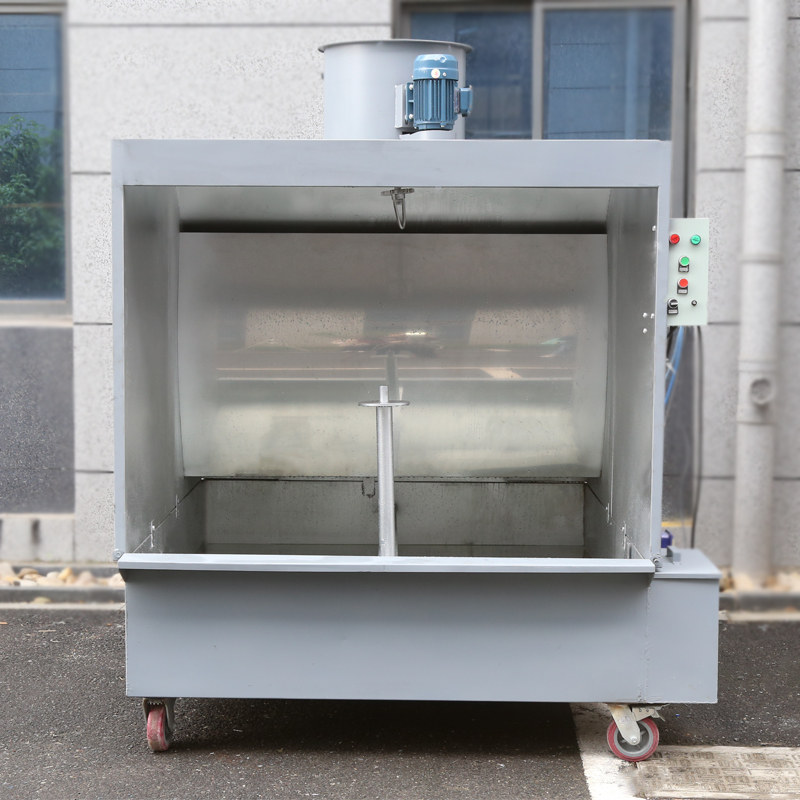

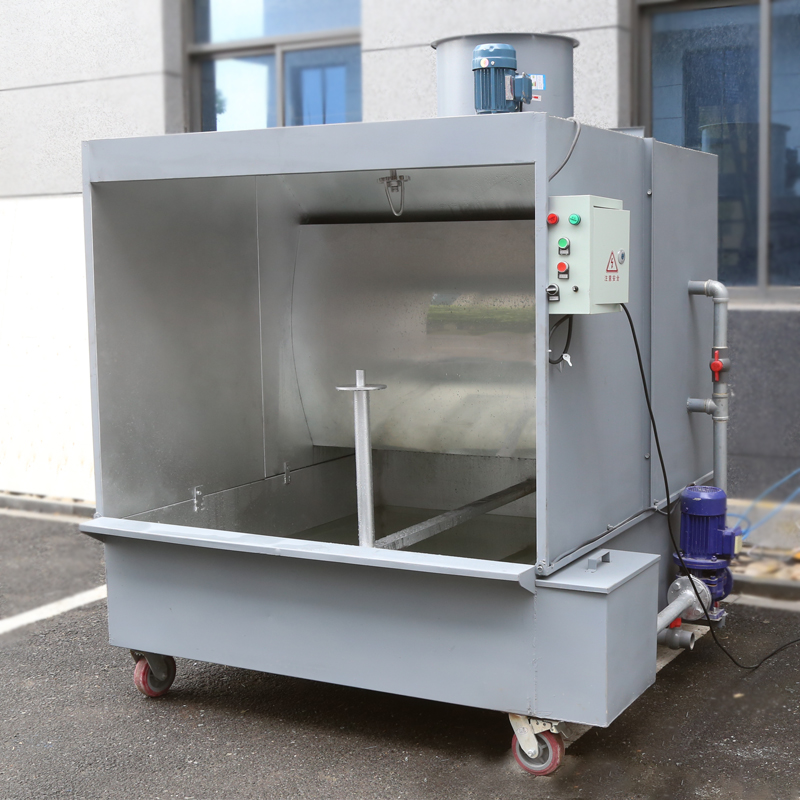

COLO water curtain spray booth is the preferred solution in the liquid painting process which requires separation and filtration, keeping your staff and the environment safe
During painting process, oversprayed paint mist is arrested by moving water(watercurtain) or collected at scrubbing area of the booth. This interaction is critical to properly remove the paint overspray from the air and put it into the water. The waste paint is then dropped down into a tank. The collection tank finally becomes filled with paint sludge that needs to be cleaned.
Water curtain spray booths provides constant uniform airflow in the booth due to constant pressure through water curtain as compared to dry filters that load with paint. It supports for large volume paint application or continuous production rates, it reduce downtime which means no need to change filtration like dry filter booth. Moreover, water curtain paint booth handles significantly more overspray.
1. Full width stainless steel water curtain panel, ensures rust resistence and long userful life.
2. Built with centrifugal axial flow fan with low noise, provides sufficient and uniform airflow.
3. Self-suction water pump includes a filter screen for protection.
4. Energy-saving anti-explosion light at both canopy roof for clear painting jobs.
5. It can be operated manually or combined with conveyor to form an automatic production line.
6. The water applied to the paint spray booth can be reused again and again to reduce cost.
7. Can be customed with turntable bentch and hanger to hold the workparts, making operation easier.
| Model: | COLO-PT1500 |
| Water Curtain Panel Width | 1500mm |
| Fan Air Flow | 8000m2/h |
| Motor Power | 0.75kw*1 |
| Water Pump | 0.55kw*1 |
| Packing Size | 1.7*1.8*2.3m |
| Weight | 500kg |
| Model | COLO-PT800 | COLO-PT1000 | COLO-PT1200 | COLO-PT1500 |
| Water Curtain Panel Width (mm) | 800 | 1000 | 1200 | 1500 |
| Fan Air Flow m2/h | 4000 | 7500 | 7500*1 | 8000*1 |
| Motor Power( kw) | 0.37*1 | 0.75*1 | 0.75*1 | 0.75*1 |
| Water Pump (kw) | 0.37*1 | 0.55*1 | 0.55*1 | 0.55*1 |
| Packing Size (L*W*H) | 1.0*1.2*2.1 M | 1.2*1.8*2.3 M | 1.4*1.8*2.3 M | 1.7*1.8*2.3 M |
| Weight (kg) | 300 | 350 | 450 | 500 |
| Model | COLO-PT2000 | COLO-PT3000 | COLO-PT3500 | COLO-PT4000 |
| Water Curtain Panel Width (mm) | 2000 | 3000 | 3500 | 4000 |
| Fan Air Flow m2/h | 22000 | 18000*2 | 18000*2 | 18000*2 |
| Motor Power( kw) | 1.5*1 | 1.5*2 | 1.5*2 | 2.2*2 |
| Water Pump (kw) | 0.55*1 | 0.75*1 | 0.75*1 | 1.5*1 |
| Packing Size (L*W*H) | 2.2*1.8*2.3 M | 3.2*1.8*2.3 M | 3.7*1.8*2.5 M | 4.3*1.8*2.5 M |
| Weight (kg) | 580 | 670 | 990 | 1050 |
