What are common problems in electrostatic spray painting and how to solve them?

Electrostatic spray painting offers many advantages, but it can also present challenges. Below are some common problems and their potential solutions:

1. Inadequate Coating

Problem: Uneven application or patches where paint is missing.

Solution

Ensure the object is properly grounded.

Check that the air pressure and voltage settings are optimal for the paint being used.

Adjust the distance from the spray gun to the surface to improve coverage.

2. Orange Peel Effect

Problem: A textured surface finish resembling the skin of an orange.

Solution

Adjust the viscosity of the paint (thinning may be necessary).

Fine-tune the air pressure and atomization settings.

Ensure that the gun is at the correct distance from the surface.

3. Poor Adhesion

Problem: Paint does not stick well to the surface and may peel or chip easily.

Solution

Ensure the surface is thoroughly cleaned and prepped (free of oils, dirt, and dust).

Use appropriate primers that enhance adhesion for the specific materials being painted.

Verify that the electrostatic charge is properly applied; check the voltage levels.

4. Finish Issues (Blushing or Cloudiness)

Problem: A cloudy appearance or blushing caused by moisture in the paint.

Solution

Monitor environmental conditions: avoid high humidity during the painting process.

Use additives that help with moisture control if necessary.

Improve ventilation in the spraying area.

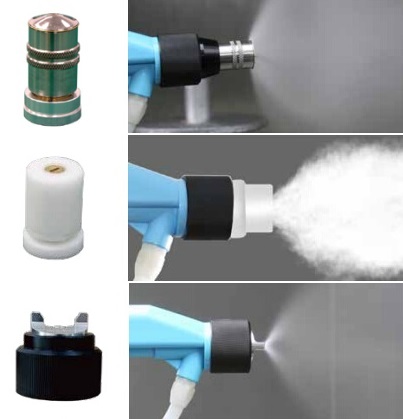

5. Clogged Nozzle

Problem: Paint build-up in the nozzle leads to inconsistent spray patterns or blockage.

Solution

Regularly clean the nozzle and other parts of the spray gun (follow manufacturer’s maintenance recommendations).

Use filters to remove debris and particles from the paint before it enters the gun.

6. Drips and Runs

Problem: Excess paint leads to sagging and dripping.

Solution

Reduce the paint flow and ensure the spray pattern is correct.

Maintain the recommended distance between the gun and the object.

Ensure proper application technique with multiple lighter coats rather than a single heavy coat.

7. Inconsistent Color

Problem: Variation in color or finish between batches or sections.

Solution

Use the same batch of paint whenever possible.

Mix paint thoroughly prior to application to ensure consistency.

Store paint properly to prevent settling and changes in formulation.

8. Static Discharge

Problem: Unintentional discharge causing shock or damage.

Solution

Check the grounding system and ensure proper electrostatic setup.

Use anti-static equipment or materials when working in sensitive environments.

Conclusion

By recognizing these common problems and implementing suitable solutions, operators can enhance the efficiency and quality of their electrostatic spray painting processes. Regular training and maintenance will also contribute to better outcomes and fewer issues over time.
