Dry Filter Spray Booth, Industrial Paint Spray Booth

Dry filter booths are designed to remove pollutants from industrial environments such as paint spray shops, ensuring suitable working conditions that complies with current health and safety legislation. Special paper and fiber filters are used to which any sticky particles adhere, allowing particulate free air extracted to atomsphere.

Dry Filter Spray Booth Configurations

• The dry spray booth excellently combines paper filter and fiber filter to achieve separation effect over 98%

• The filter media is designed for easy change, made from 100% organic materials, hardly adhered with particulates,

• Spray booth construction is durable galvanized steel sheet that resists corrosion and lasts longer.

• Belt driven axial fan works with low noise caused, designed for airlow stepless adjustable.


• Built with explosion-proof LED lights on the booth top, ensures clear sight during painting jobs.



Dry Filter Spray Booth Working Theory

1. The filtration section excellently combines paper filter and fiber filter to capture pollutent particulates.

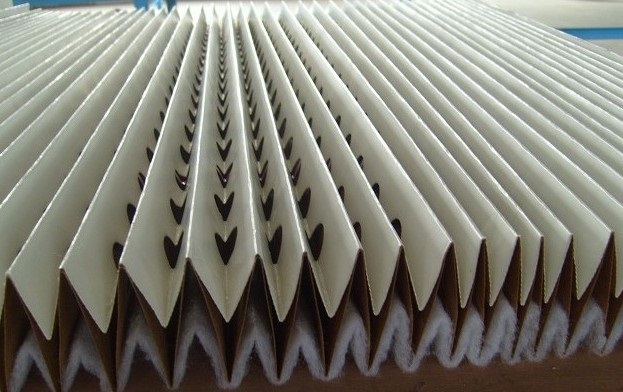

2. The paper filter media consists of 2 layers cardboard bonded together, each layer has holes and is folded in concertina form.

3. During painting process, The "hole pattern" separation filter for paint booths promotes the deposition of particles by forcing air laden with particles to change direction continuously. Thus, these successive movements ensure the deposition of particles on the walls as long as the flow of air is in continuous movement.

4. Finally use fiber filter to further accommodate the remaining paint particles.

Dry Filter Spray Booth Specifications
