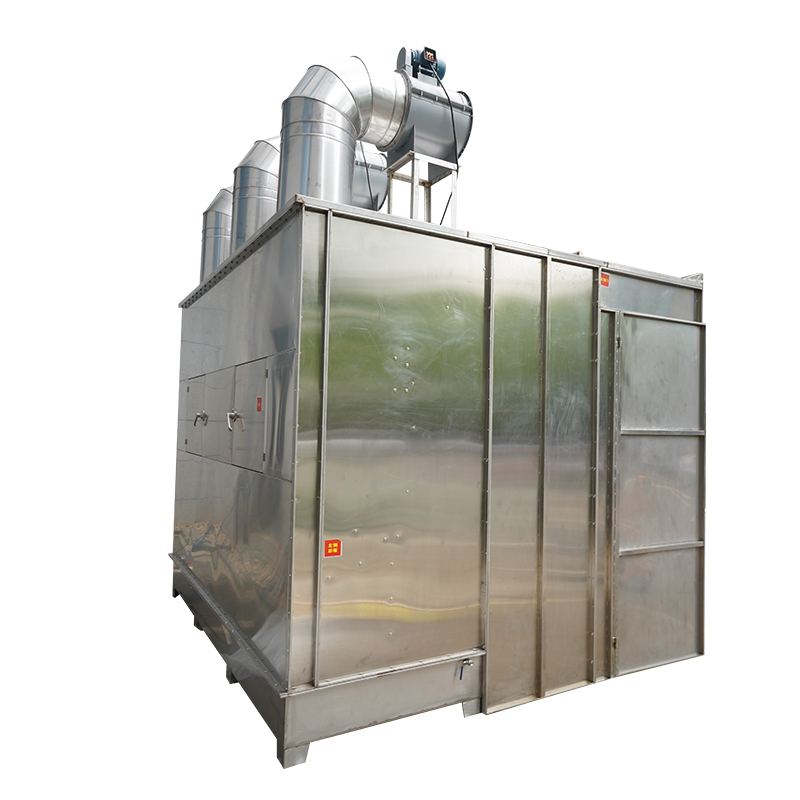

Walk-in type paint booths are flexible, cost-effective solutions for a wide variety of finishing applications. The open-front design saves valuable floor space and makes it easy to move products and parts in and out of the booth. COLO water curtain spray booth is the preferred solution in the liquid painting process which requires separation and filtration, keeping your staff and the environment safe.
Water curtain spray booth provides constant uniform airflow in the booth due to constant pressure through water curtain as compared to dry filters that load with paint. It supports for large volume paint application or continuous production rates, it reduce downtime which means no need to change filtration like dry filter booth. Moreover, water curtain paint booth handles significantly more overspray.
1) Full width stainless steel water curtain panel, ensures rust resistence and long userful life.
2) Configured with centrifugal axial flow fan with low noise, provides sufficient and uniform airflow.
3) Built with energy-saving anti-explosion lights at both canopy roof provides a clear painting jobs.
4) The water applied to the paint spray booth can be reused again and again to reduce cost.
5) An independent control box to safely control all electric processing parameters and functions.
6) Self-suction water pump includes a filter screen for protection.
7) Precision-punched panels with sturdy nut-and-bolt assembly — confirm longevity, safety and excellent structural integrity.

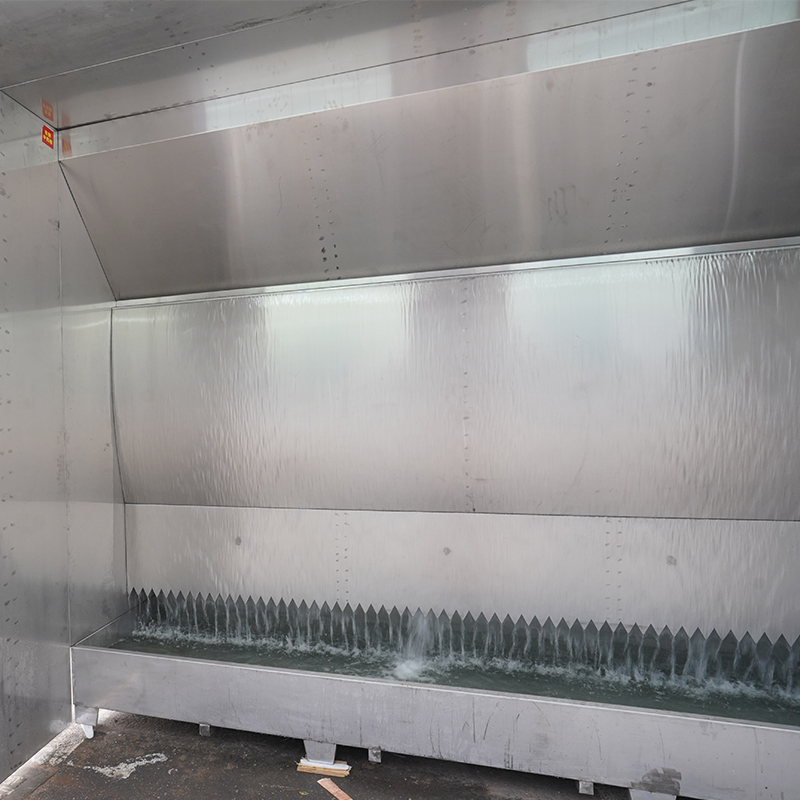

Stainless Steel Curtain Panel
Axial Flow Fan

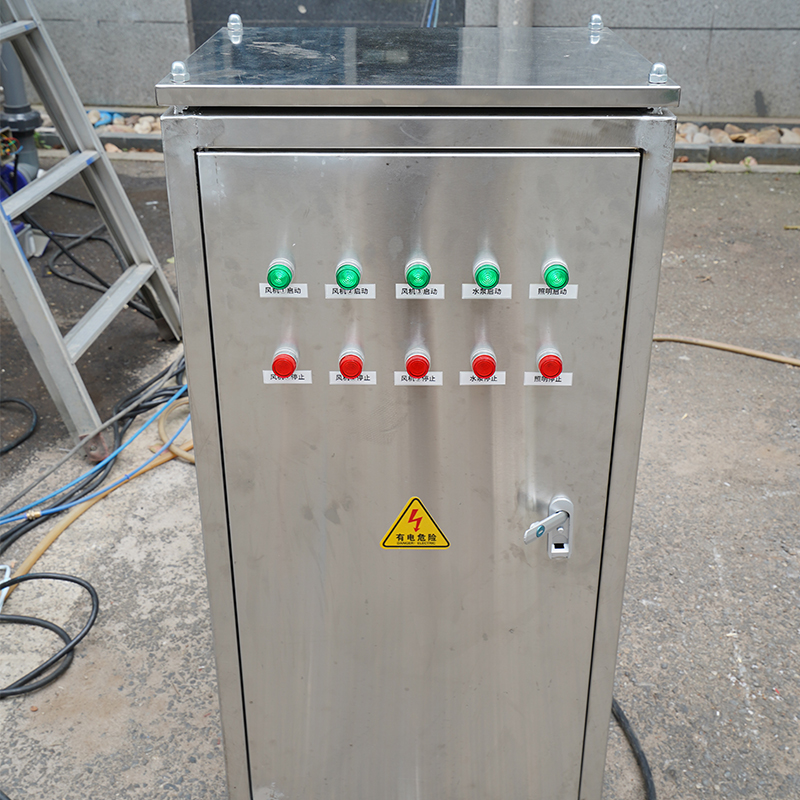

Electric Control

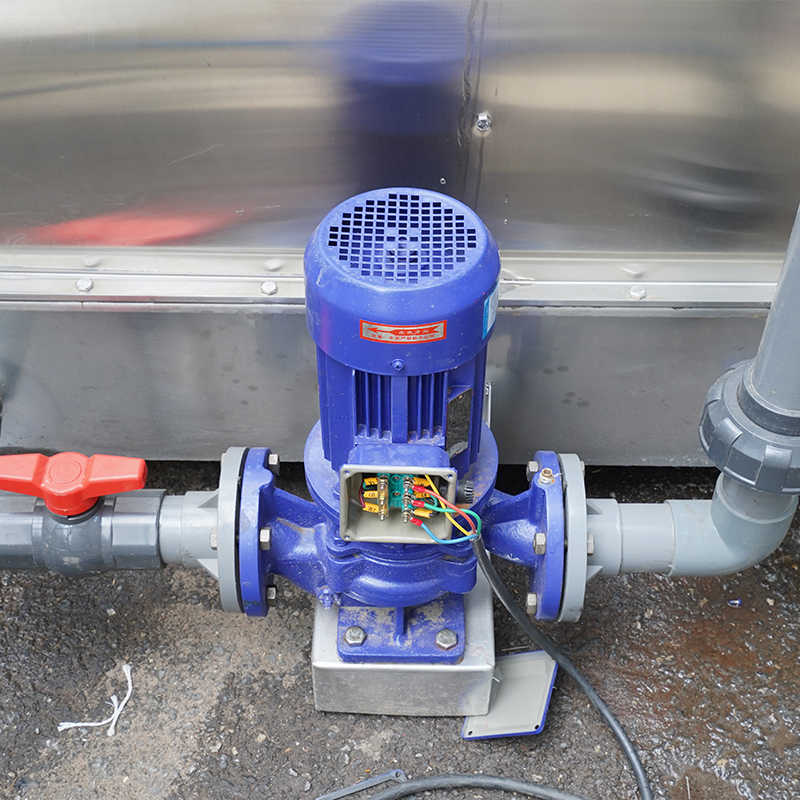

Water Pump
Choose from COLO standard models or we can custom design an water curtain spray booth to meet your specific requirements.
| Model | COLO-PT800 | COLO-PT1000 | COLO-PT1200 | COLO-PT1500 |
| Water Curtain Panel Width (mm) | 800 | 1000 | 1200 | 1500 |
| Fan Air Flow m2/h | 4000 | 7500 | 7500*1 | 8000*1 |
| Motor Power( kw) | 0.37*1 | 0.75*1 | 0.75*1 | 0.75*1 |
| Water Pump (kw) | 0.37*1 | 0.55*1 | 0.55*1 | 0.55*1 |
| Packing Size (L*W*H) | 1.0*1.2*2.1 M | 1.2*1.8*2.3 M | 1.4*1.8*2.3 M | 1.7*1.8*2.3 M |
| Weight (kg) | 300 | 350 | 450 | 500 |
| Model | COLO-PT2000 | COLO-PT3000 | COLO-PT3500 | COLO-PT4000 |
| Water Curtain Panel Width (mm) | 2000 | 3000 | 3500 | 4000 |
| Fan Air Flow m2/h | 22000 | 18000*2 | 18000*2 | 18000*2 |
| Motor Power( kw) | 1.5*1 | 1.5*2 | 1.5*2 | 2.2*2 |
| Water Pump (kw) | 0.55*1 | 0.75*1 | 0.75*1 | 1.5*1 |
| Packing Size (L*W*H) | 2.2*1.8*2.3 M | 3.2*1.8*2.3 M | 3.7*1.8*2.5 M | 4.3*1.8*2.5 M |
| Weight (kg) | 580 | 670 | 990 | 1050 |
