COLO-PT3200

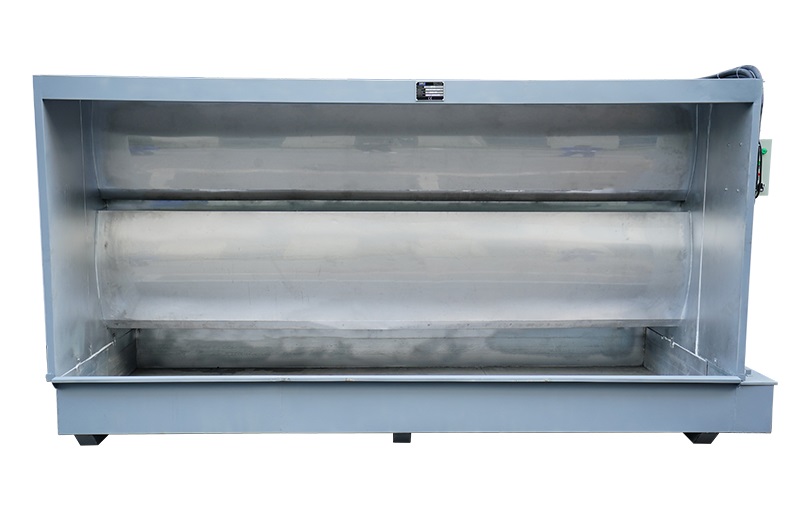

COLO water curtain spray booth is the preferred solution in the liquid painting process which requires efficient filtration that keeps your staff and the environment safe. Water wash filtration systems is ideal for high paint volumes application as they can deal with significantly more overspray volume compared to dry filter booths.
During painting process, oversprayed paint mist is arrested by water curtain or directly dropped to the washing area, which ensure all overspray paints from the air are put into the water and then collected into a tank. The tank finally becomes filled with paint sludge that needs to be cleaned.
Water curtain paint booths are equipped with components such as exhaust device, water feeding device, paint arresting device, spraying device, air-water separating device, air tube, etc, which are manufactured and integrated under stringent quality standards.
1) Full width stainless steel water curtain panel, ensures rust resistence and long userful life.

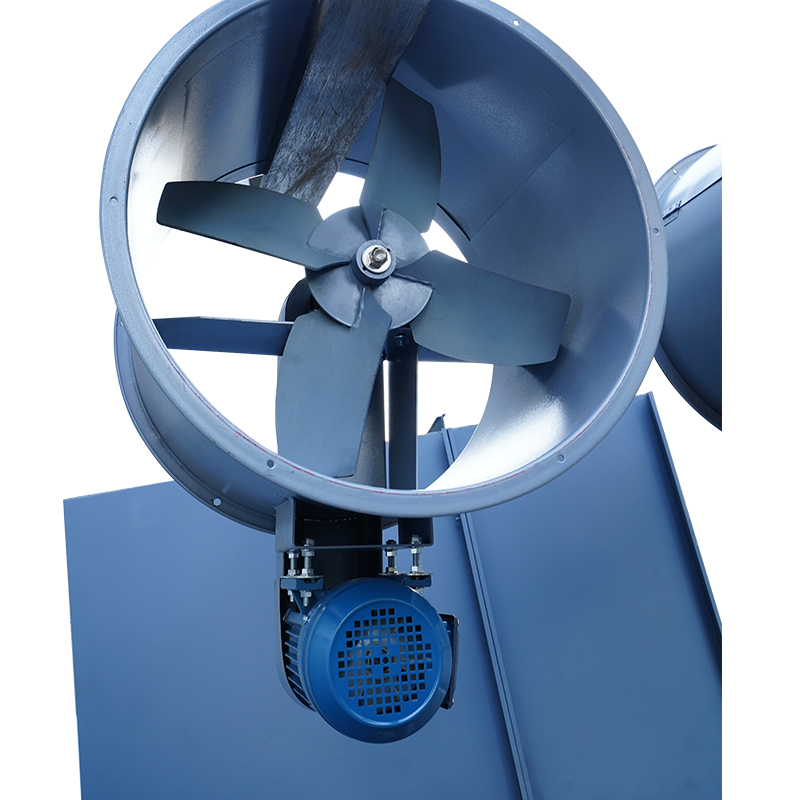

2) Built with centrifugal axial flow fan with low noise, provides sufficient airflow.

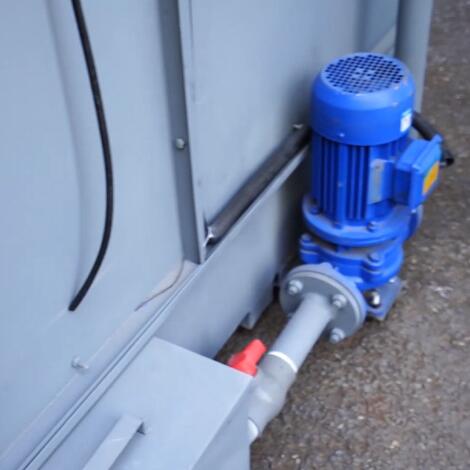

3) Self-suction water pump includes a filter screen for protection.

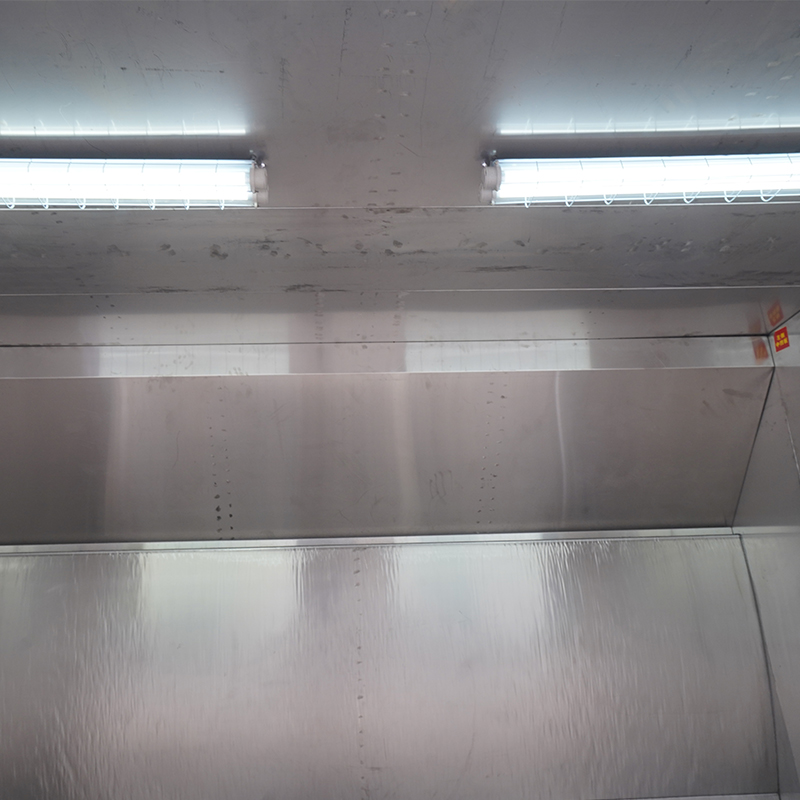

4) Energy-saving anti-explosion light at both canopy roof for clear painting jobs.
5) It can be operated manually or combined with conveyor to form an automatic production line.
7) Precision-punched panels with sturdy nut-and-bolt assembly一confirm longevity, safety and excellent structural integrity.
| Model: | COLO-PT3200 |
| Water Curtain Panel Width | 3200mm |
| Fan Air Flow | 18000x2m2/h |
| Motor Power | 1.5kw*2 |
| Water Pump | 0.75kw*1 |
| Packing Size | 3.4*1.8*2.3m |
| Weight | 800kg |
| Model | COLO-PT800 | COLO-PT1000 | COLO-PT1200 | COLO-PT1500 |
| Water Curtain Panel Width (mm) | 800 | 1000 | 1200 | 1500 |
| Fan Air Flow m2/h | 4000 | 7500 | 7500*1 | 8000*1 |
| Motor Power( kw) | 0.37*1 | 0.75*1 | 0.75*1 | 0.75*1 |
| Water Pump (kw) | 0.37*1 | 0.55*1 | 0.55*1 | 0.55*1 |
| Packing Size (L*W*H) | 1.0*1.2*2.1 M | 1.2*1.8*2.3 M | 1.4*1.8*2.3 M | 1.7*1.8*2.3 M |
| Weight (kg) | 300 | 350 | 450 | 500 |
| Model | COLO-PT2000 | COLO-PT3000 | COLO-PT3500 | COLO-PT4000 |
| Water Curtain Panel Width (mm) | 2000 | 3000 | 3500 | 4000 |
| Fan Air Flow m2/h | 22000 | 18000*2 | 18000*2 | 18000*2 |
| Motor Power( kw) | 1.5*1 | 1.5*2 | 1.5*2 | 2.2*2 |
| Water Pump (kw) | 0.55*1 | 0.75*1 | 0.75*1 | 1.5*1 |
| Packing Size (L*W*H) | 2.2*1.8*2.3 M | 3.2*1.8*2.3 M | 3.7*1.8*2.5 M | 4.3*1.8*2.5 M |
| Weight (kg) | 580 | 670 | 990 | 1050 |
